FHB27 QTV LARGE SERIES HYDRAULIC ROCK BREAKERS for 21–33 Ton Excavators – BIGGER, BETTER, BOLDER

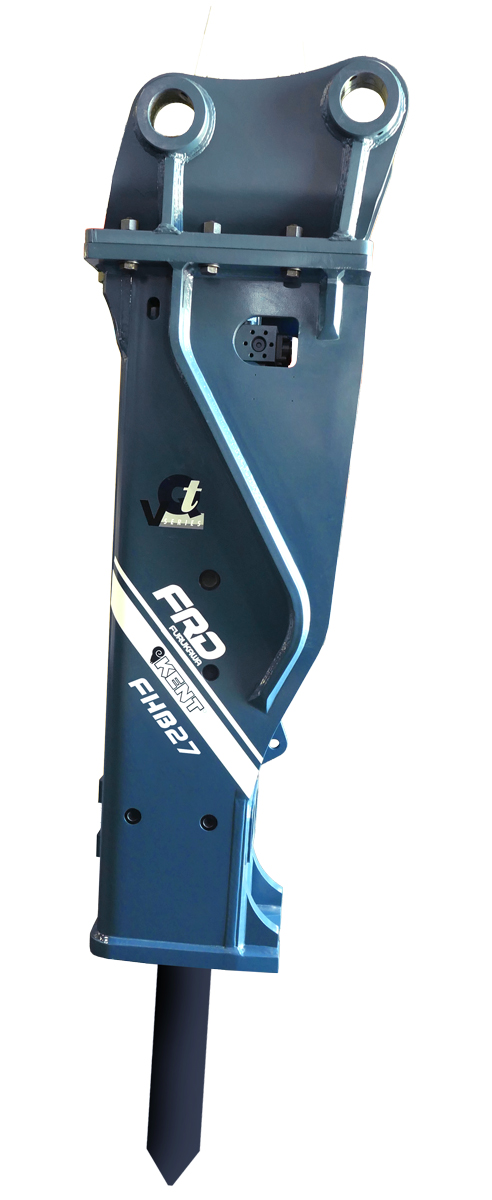

The FHB27 Qtv is FRD’s fifth-generation breaker, with the Quick Switch Valve as standard and the Smart Stroke System as an option; made for excavators in the 21 to 33 ton range, and is a brute among hammers.
Built to take punishment, the FHB27 Qtv rock breaking hammer can handle road removal, reduction of bridge pylons, foundation demolition, and the extremes of quarry applications. Incorporating the latest in design technology, it also offers less maintenance and downtime and smoother operation. The new FHB Series for excavators has eliminated a problem that has long plagued the breaker industry – thru-bolts. Our new large series of hydraulic hammers are designed without thru-bolts and all the problems that go with them.
PERFORMANCE SPOTLIGHT
What is new in the FHB27?
The FRD FHB27 is a hydraulic breaker for excavators in the 21 to 33 U.S. ton class, with 27 tons as the optimal carrier weight. It weighs 3,762 lb (1,710 kg), runs on 36.9 to 55.4 GPM at 2,320 to 2,610 psi, and delivers 370 to 550 blows per minute through 5.51 in (140 mm) working steel. The Quick Switch Valve is standard, the automatic Smart Stroke System is optional, and the solid body has no thru-bolts.
An increased hydraulic flow range allows the hammer to be used on a wider range of carriers for greater inventory utilization.
Our unique design gives us an excellent power to weight ratio for lower maintenance and increased performance. This solid body concept eliminates thru-bolts which has reduced the breaker weight but does not affect our impact energy. This makes for much better control for the operator, less wear and tear on the excavator and reduced fuel costs.
Operators appreciate performance features that include a new valve design to reduce hydraulic fluid temperatures. A redesigned piston enhances surface contact to working steel, while a larger bushing surface keeps it aligned for greater impact. A replaceable cylinder liner increases tool life and reduces time-consuming maintenance. A higher back head pressure and large piston diameter increase the impact energy by up to 20-30% over previous models. The one-piece enclosure reduces noise levels making it a perfect choice for reduced noise applications.
The FHB27 ships in FRD’s Qtv cradle, a low-noise protective housing that accepts a wide range of top caps. The FHB Series builds on FRD’s Fx Series, keeps its solid body without thru-bolts, and adds new stroke control, updated stop pins and rod pins, a three-point dust intake prevention system, and a valve design that lowers hydraulic oil temperature.
All FRD USA hammers come complete with our exclusive Pro-Pak for ease of installation. The Pro-Pak includes hose whips, mounting hardware, standard working steel and tool kit with operating manual at no additional charge.
What is new in the FHB27?
The FRD FHB27 is a hydraulic breaker for excavators in the 21 to 33 U.S. ton class, with 27 tons as the optimal carrier weight. It weighs 3,762 lb (1,710 kg), runs on 36.9 to 55.4 GPM at 2,320 to 2,610 psi, and delivers 370 to 550 blows per minute through 5.51 in (140 mm) working steel. The Quick Switch Valve is standard, the automatic Smart Stroke System is optional, and the solid body has no thru-bolts.
An increased hydraulic flow range allows the hammer to be used on a wider range of carriers for greater inventory utilization.
Our unique design gives us an excellent power to weight ratio for lower maintenance and increased performance. This solid body concept eliminates thru-bolts which has reduced the breaker weight but does not affect our impact energy. This makes for much better control for the operator, less wear and tear on the excavator and reduced fuel costs.
Operators appreciate performance features that include a new valve design to reduce hydraulic fluid temperatures. A redesigned piston enhances surface contact to working steel, while a larger bushing surface keeps it aligned for greater impact. A replaceable cylinder liner increases tool life and reduces time-consuming maintenance. A higher back head pressure and large piston diameter increase the impact energy by up to 20-30% over previous models. The one-piece enclosure reduces noise levels making it a perfect choice for reduced noise applications.
The FHB27 ships in FRD’s Qtv cradle, a low-noise protective housing that accepts a wide range of top caps. The FHB Series builds on FRD’s Fx Series, keeps its solid body without thru-bolts, and adds new stroke control, updated stop pins and rod pins, a three-point dust intake prevention system, and a valve design that lowers hydraulic oil temperature.
All FRD USA hammers come complete with our exclusive Pro-Pak for ease of installation. The Pro-Pak includes hose whips, mounting hardware, standard working steel and tool kit with operating manual at no additional charge.
Features & Benefits
- The Smart Stroke System (SSS) automatically dials in optimal stroke length by sensing piston position, and is available as an option on select models
- New models include the manual Quick Switch Valve (QSV) (with the exception of the FHB12) for altering between short and long stroke based on application
- Enhanced internal hydraulics efficiencies leading to improved production
- Stop pins and rod pins updated to improve breaker durability
- Reduced CO2 emissions results in more eco-friendly operation.
- Designed without thru-bolts.
- Increased hydraulic flow range for use on a wider range of carriers.
- Mono-block design eliminates a separate cylinder, front-head and thru-bolts.
- Improved Dust Intake Prevention system increases reliability.
- Replaceable cylinder liner with concentric porting keeps piston aligned for maximum impact performance.
- Improved valve design reduces hydraulic fluid temperature which increases performance.
- Square body design for superior strength.
- 3-point sealing system prevents internal contamination.
- Redesigned piston increases surface contact to working steel.
- Improved dampening system keeps the breaker properly secure in cradle to reduce wear.
- Qtv cradle for improved protection, sound suppression and dampening.
- Longer thrust bushing for increased internal alignment also insures direct impact with piston.
- Includes two-year warranty with registration.
- The Smart Stroke System (SSS) automatically dials in optimal stroke length by sensing piston position, and is available as an option on select models
- New models include the manual Quick Switch Valve (QSV) (with the exception of the FHB12) for altering between short and long stroke based on application
- Enhanced internal hydraulics efficiencies leading to improved production
- Stop pins and rod pins updated to improve breaker durability
- Reduced CO2 emissions results in more eco-friendly operation.
- Designed without thru-bolts.
- Increased hydraulic flow range for use on a wider range of carriers.
- Mono-block design eliminates a separate cylinder, front-head and thru-bolts.
- Improved Dust Intake Prevention system increases reliability.
- Replaceable cylinder liner with concentric porting keeps piston aligned for maximum impact performance.
- Improved valve design reduces hydraulic fluid temperature which increases performance.
- Square body design for superior strength.
- 3-point sealing system prevents internal contamination.
- Redesigned piston increases surface contact to working steel.
- Improved dampening system keeps the breaker properly secure in cradle to reduce wear.
- Qtv cradle for improved protection, sound suppression and dampening.
- Longer thrust bushing for increased internal alignment also insures direct impact with piston.
- Includes two-year warranty with registration.
