Small Series Hydraulic Rock Breakers Combine Agility and Performance to Increase Productivity

The latest in Furukawa’s small series breaker lineup, the Fxa Series, features improvements to three internal components – the piston, cylinder liner and seal retainer. As a result of these changes, the Fxa Series is harder-hitting and increases performance. The improved piston has a longer stroke length and an increased diameter. The faster speed of the larger piston combined with an increased stroke means greater better, faster breaking in less time.

The modified cylinder liner accommodates the larger piston and decreases the build up of internal heat, while the redesigned seal retainer compensates for higher back-head pressure. The Fxa breakers offer a large range of carrier mounts. The Switch Hitch is also compatible with various excavator models as well as backhoes.

The Small Series hydraulic rock breakers & rock hammers from Furukawa FRD combines powerful penetration with agility & easy operation for mining, quarry, construction, excavation & industrial applications.

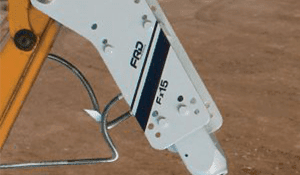

Fx15a/25a/35a SMALL SERIES ROCK BREAKERS

  • Small Footprint

  • Dependable Hammers

  • Monoblock Design

Due to a small footprint, these breakers are ideal for use in tight work environments where space is limited. Select components are interchangeable, allowing you to utilize the same working steel, seal kit and front bushing. These dependable hammers are available in a variety of mounting configurations enabling them to be easily attached to mini-excavators, excavators, skid-steer loaders and backhoes (Fx15a, Fx25a and Fx35a may be used on mini-excavators, compact utility loaders and skid steer loaders). Performance features and mounting options make these hammers ideal for site preparation, foundation removal, road repair, driveway and sidewalks or pedestrian bridges.

Fx15a/25a/35a SMALL SERIES ROCK BREAKERS

Due to a small footprint, these breakers are ideal for use in tight work environments where space is limited. Select components are interchangeable, allowing you to utilize the same working steel, seal kit and front bushing. These dependable hammers are available in a variety of mounting configurations enabling them to be easily attached to mini-excavators, skid-steer loaders and backhoes (Fx15a, Fx25a and Fx35a may be used on mini-excavators, compact utility loaders and skid steer loaders). Performance features and mounting options make these hammers ideal for site preparation, foundation removal, road repair, driveway and sidewalks or pedestrian bridges.

Fx15a/25a/35a Features & Benefits

  • Mono-block design with only two moving parts reduces maintenance.
  • No thru-bolts to maintain or diaphragm to replace.
  • Field replaceable front wear bushing keeps tools at peak performance.
  • Wide oil flow range for fast, hard-hitting performance and more carrier options.
  • A variety of mounting options that can accommodate any carrier or application.
  • Mono-block design with only two moving parts reduces maintenance.
  • No thru-bolts to maintain or diaphragm to replace.
  • Field replaceable front wear bushing keeps tools at peak performance.
  • Wide oil flow range for fast, hard-hitting performance and more carrier options.
  • A variety of mounting options that can accommodate any carrier or application.

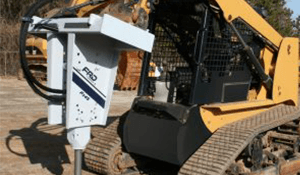

Fx45a/55a SMALL SERIES ROCK BREAKERS

  • Interchangeable Components

  • Dependable Hammers

  • Mounting Capabilities

These dependable hammers are available in a variety of mounting configurations enabling them to be easily attached to mini-excavators, excavators, skid-steer loaders and backhoes. Performance features and mounting options make these hammers ideal for site preparation, foundation removal, road repair, driveway and sidewalks or pedestrian bridges.

Fx45a/55a SMALL SERIES ROCK BREAKERS

These dependable hammers are available in a variety of mounting configurations enabling them to be easily attached to mini-excavators, skid-steer loaders and backhoes. Performance features and mounting options make these hammers ideal for site preparation, foundation removal, road repair, driveway and sidewalks or pedestrian bridges.

Fx45a/55a Features & Benefits

  • Mono-block design with only two moving parts reduces maintenance.
  • No thru-bolts to maintain or diaphragm to replace.
  • Replaceable front wear bushing keeps tools at peak performance.
  • Wide oil flow range for fast, hard-hitting performance and more carrier options.
  • A variety of mounting options that can accommodate any carrier or application.
  • Oval retaining pin for increased steel contact and double service life.
  • Mono-block design with only two moving parts reduces maintenance.
  • No thru-bolts to maintain or diaphragm to replace.
  • Replaceable front wear bushing keeps tools at peak performance.
  • Wide oil flow range for fast, hard-hitting performance and more carrier options.
  • A variety of mounting options that can accommodate any carrier or application.
  • Oval retaining pin for increased steel contact and double service life.

CARRIER COMPATIBILITY GUIDE for SMALL BREAKERS

Select FRD Model

Current Models
Fx15a
Fx25a
Fx35a
Fx45a
Fx55a
Previous Fx Series Models
Fx15
Fx25
Fx35
Fx45
Fx55
Previous F Series Models
F1
F2
F3
F4
F5

Choosing the Right Hydraulic Breaker

When operated properly, breakers efficiently and effectively break up concrete and shatter rock. If not operated properly or not sized correctly for the job, the attachment can fail unexpectedly and waste precious time on a job site, or even suffer a reduced lifespan.

Get the Guide for our Small Series Hydraulic Rock Breakers & Rock Breaking Attachments | Furukawa FRD

To learn more about proper operating techniques and choosing the right hydraulic breaker for your job download our latest guide.
