TEFRA AUTO COUPLERS – COMBINING SAFETY AND SECURITY
The dual safety features of the TEFRA Auto Coupler (TAC) are unique within the attachment industry.
The TAC allows you to quickly and safely change attachments, creating a very versatile base machine and more productive work environment.

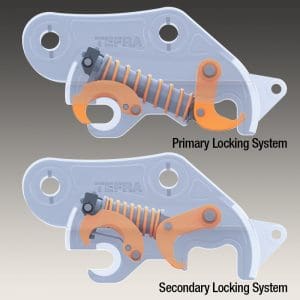

The coupler features a patented safety mechanism that eliminates the need for manual locking pins found on competitive couplers. The primary safety system consists of a uniquely designed set of hooks powered by a single cylinder and high specification hydraulic controls that lock the attachment securely into place.
Our secondary locking system is an active protection system (APS), consisting of two separate powerful springs (coil and leaf) that apply pressure to the hooks to ensure attachment retention at all times.
Features & Benefits
- Smart Valve – A unique, fully patented major safety feature of the TEFRA Coupler.
- The Smart Valve is a simple, patented, totally effective solution ensuring that the attachment and release sequence cannot be started until the coupler is orientated towards the operator and close to the ground. This eliminates the possibility of an unsafe situation occurring.
- The Smart Valve’s compact design means it can be totally enclosed within the hydraulic cylinder at the center of the coupler; this protected position means it cannot be contaminated.
- It requires no routine maintenance and works in conjunction with other warning systems such as audible indicators to ensure a safe and easy operation.
Specifications
| Title | Unit |
|---|---|
| TAC30 | 3 – 4 t (3,000 - 4,000 kgs) |
| TAC50 | 5 – 7 t (5,000 - 7,000 kgs) |
| TAC70 | 8 – 9 t (8,000 - 9,000 kgs) |
| TAC130 | 10 – 14 t (10,000 - 14,000 kgs) |
| TAC160 | 15 – 18 t (15,000 - 18,000 kgs) |
| TAC210 | 24 – 28 t (24,000 - 28,000 kgs) |
| TAC260 | 19 – 23 t (19,000 - 23,000 kgs) |
| TAC325 | 29 – 33 t (29,000 - 33,000 kgs) |
| TAC350 | 34 – 39 t (34,000 - 39,000 kgs) |
| TAC450 | 40 – 50 t (40,000 - 50,000 kgs) |
| Title | Unit |
|---|---|
| TAC30 | 1.4 – 1.6″ (35 – 50 mm) |
| TAC50 | 1.6 – 2.2″ (40 – 55 mm) |
| TAC70 | 1.7 – 1.9″ (45 – 50 mm) |
| TAC130 | 2.3 – 2.5″ (60 – 65 mm) |
| TAC160 | 2.7 – 3.1 ″ (70 – 80 mm) |
| TAC210 | 3.1″ (80 mm) |
| TAC260 | 3.1″ (80 mm) |
| TAC325 | 3.5″ (90 mm) |
| TAC350 | 3.5 – 3.9″ (90 – 100 mm) |
| TAC450 | 3.9 – 4.3″ (100 – 110 mm) |
| Title | Unit |
|---|---|
| TAC30 | 4.6″ (117 mm) |
| TAC50 | 5.6 – 7.2″ (143 – 183 mm) |
| TAC70 | 6.4 – 7.2″ (163 – 183 mm) |
| TAC130 | 8.6– 9.4″ (218 – 238 mm) |
| TAC160 | 11 – 11.7″ (277 – 298 mm) |
| TAC260 | 11.7″ (298 mm) |
| TAC210 | 10.9 – 11.7″ (277 – 298 mm) |
| TAC325 | 14.8″ (378 mm) |
| TAC350 | 15.75″ (400 mm) |
| TAC450 | 17.4″ (442 mm) |
| Title | Unit |
|---|---|
| TAC30 | 6.4 – 8.5″ (162 –217 mm) |
| TAC50 | 8.5 – 10.7″ (216 – 272 mm) |
| TAC70 | 11 – 14″ (279 – 356 mm) |
| TAC130 | 13.6 – 17.12″ (345 – 435 mm) |
| TAC160 | 15 – 20″ (386 – 510 mm) |
| TAC260 | 15 – 20″ (386 – 510 mm) |
| TAC210 | 15 – 20″ (386 – 510 mm) |
| TAC325 | 18 – 22.5″ (455 – 572 mm) |
| TAC350 | 20.3 – 25.6″ (517 – 650 mm) |
| TAC450 | 20.3 – 25.6″ (517 – 650 mm) |
Notes
Confirm all carrier and coupler compatibility with FRD USA engineering.
CARRIER COMPATIBILITY GUIDE for TEFRA AUTO COUPLER
Select TEFRA Model Size
TAC30 - 160
TAC30
TAC50
TAC70
TAC130
TAC160
TAC210 - 450
TAC210
TAC260
TAC325
TAC350
TAC450
