HCR1100-ER Rock Drill – Better Penetration with Increased Impact

The HCR1100-ER drill incorporates innovative features for higher output and is capable of drilling at larger diameters.

Utilizing a Cummins® Tier-IV EPA compliant engine, the HCR1100-ER combines higher performance with fuel efficiency.

The Furukawa HD822 drifter (patent applied for) is designed to minimize drill noise and vibration, while increasing performance. With 26.7% more impact and 13% more airflow than its predecessor, this drill has the ability to perform in harder rock at a larger diameter.

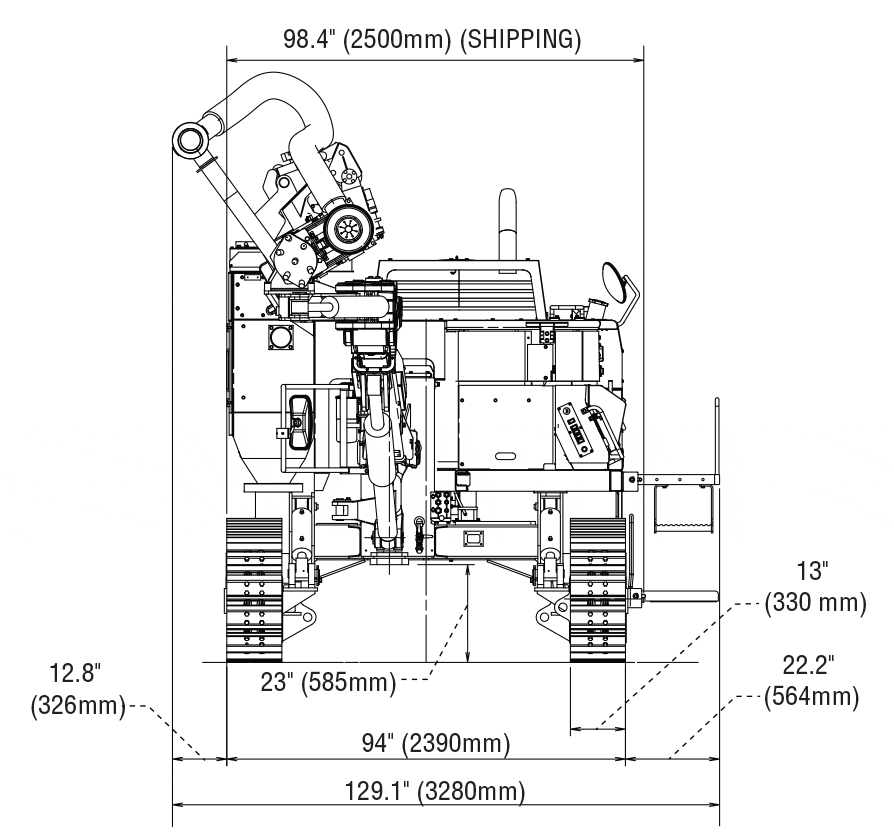

HCR1100 ER Top Hammer Drill

HCR1100-ER Features & Benefits

  • The improved electro-hydraulics allow easier operation
  • With FRD’s TFSS (total fuel savings system), the operator selects the optimum engine speed for the application, allowing all fuel savings functions to be automatically managed during drilling operation
  • The monitoring system incorporates gauges next to the drilling station, allowing the operator a quick visual of engine temperature, hydraulic oil temperature and fluid levels
  • Automatic rod changer to eliminate the need for operators to manually install drill steel, resulting in increased production and enhanced operator safety.
  • Upgraded compressor increases free air delivery by nearly 28% to accommodate larger diameter drilling
  • Winch-ready frame adds application versatility
  • Optional wireless remote allows tramming and drilling from a secondary location
