HCR900-ESV – INNOVATIVE FEATURES FOR HIGHER PERFORMANCE
Utilizing a Cummins® Tier-IV EPA compliant engine, the HCR900-ESV combines higher performance with fuel efficiency.
Simple, durable and efficient, the HCR900-ESV with extendable boom incorporates a self-adjusting drill system that ensures high productivity no matter what the drilling situation. By automatically controlling the impact force, feed force, rotation force and dual damper pressure, the HCR900-ESV continuously adapts to the changing rock conditions, increasing drilling performance and the life of drill tools while decreasing fuel consumption.
HCR900-ESV Features & Benefits
- The Furukawa HD818 drifter (patent applied for) is designed to minimize drill noise and vibration, while increasing percussion frequency by 24% versus the HD709 drifter, its predecessor.
- Ergonomically designed to minimize operator fatigue. The engine, compressor and hydraulic oil temperature gauges are highly visible, allowing the operator to monitor machine functions while remaining focused on the drilling.
- The dust collector is equipped with an effective pre-cleaner that has the same suction capacity as previous models and reduces drilling dust leakage. An optional water/dust suppression system is available for difficult drilling conditions.
- Low emission, Tier-IV Cummins® engine meets strict North American exhaust emissions regulations.
- Winch-ready frame adds application versatility.
- Rod Rack allows you to store four drill steels plus one starter rod.
- The Furukawa HD818 drifter (patent applied for) is designed to minimize drill noise and vibration, while increasing percussion frequency by 24% versus the HD709 drifter, its predecessor.
- Ergonomically designed to minimize operator fatigue. The engine, compressor and hydraulic oil temperature gauges are highly visible, allowing the operator to monitor machine functions while remaining focused on the drilling.
- Rod Rack allows you to store four drill steels plus one starter rod.
- The dust collector is equipped with an effective pre-cleaner that has the same suction capacity as previous models and reduces drilling dust leakage. An optional water/dust suppression system is available for difficult drilling conditions.
- Low emission, Tier-IV Cummins® engine meets strict North American exhaust emissions regulations.
- Winch-ready frame adds application versatility.
Specifications
| Title | Unit |
|---|---|
| Overall weight (A) *1 in lbs. (kg) | 24,317 lbs (11,030 kgs) |
| Overall weight (B) *2 in lbs. (kg) | 24,978 lbs (11,330 kgs) |

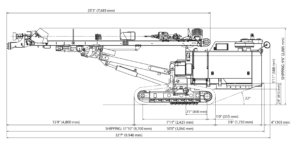

| Overall length in inches (mm) | 32′7″ (9,940 mm) |
| Shipping length in inches (mm) | 31′10″ (9,700 mm) |

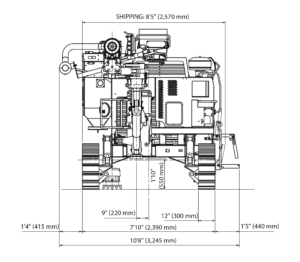

| Overall width in inches (mm) | 10′8″ (3,245 mm) |
| Shipping width in inches (mm) | 8′5″ (2,570 mm) |
| Overall height in inches (mm) | 9′6″ (2,885 mm) |
| Shipping height in inches (mm) | 9′6″ (2,885 mm) |
| Title | Unit |
|---|---|
| Model | HD818 |
| Weight in lbs. (kg) | 445 lbs (202 kgs) |
| Length in inches (mm) | 3′7″ (1,092.2 mm) |
| Width in inches (mm) | 1′2″ (352 mm) |
| Height in inches (mm) | 11″ (275 mm) |
| Number of blows BPM | 2,400 BPM |
| Rotating speed | 0 – 200 rpm / 0 – 200 min-1 |
| Title | Unit |
| Title | Unit |
|---|---|
| Make & model | Cummins® QSB6.7 (Tier4 Final, Stage IV) |
| Type | Diesel, Water-Cooled, 6 Cylinders |
| Piston displacement | 408.9 cu in (6.7 L) |
| Power output | 225.3 hp/2,200 rpm / 168 kW/2,200 min-1 |
| Fuel capacity | 84.5 gal (320 L) |
| DEF capacity | 5 gal (19 L) |
| Title | Unit |
|---|---|
| Track length in inches (mm) | 10′0″ (3,060 mm) |
| Track length on ground in inches (mm) | 7′11″ (2,425 mm) |
| Track width in inches | 12″ (300 mm) |
| Ground contact pressure *3 | 10.8 psi (74.3 kPa) |
| Ground clearance in inches (mm) | 1′10″ (550 mm) |
| Frame oscillation angle | ±10° |
| Tramming speed | 0 – 2.2 mph / 0 – 3.5 km/h |
| Gradeability | 57.7% (30°) |
| Maximum traction force | 16,636 lb-force (74 kN) |
| Title | Unit |
|---|---|
| Model | JF326 |
| Type | Extension |

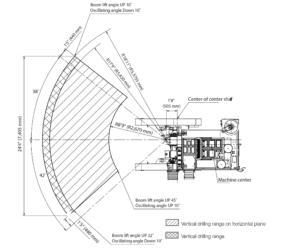

| Boom lifting angle: up/down | 45°/15° |
| Boom swing angle: right/left | 37°/43° |
| Boom slide length in inches (mm) | 4′ 11″ (1,500 mm) |
| Title | Unit |
|---|---|
| Model | GH831 |
| Overall length in inches (mm) | 25′3″ (7,685 mm) |
| Feed length in inches (mm) | 14′8″ (4,480 mm) |
| Feed Type | Hydraulic Motor Driven Chain |
| Guide slide length in inches (mm) | 3′11″ (1,200 mm) |
| Guide swing angle: right/left | 40° / 40° |
| Guide tilt angle | 180° |
| Maximum pulling force | 6,407 lb-force (28.5 kN) |
| Feed system | Motor Chain |
| Title | Unit |
|---|---|
| Make & model | AIRMAN PDS265-S37B |
| Type | 1-Stage Screw Compressor |
| Discharge airflow | 215 CFM / 6.1 m3/min |
| Discharge pressure | 149 psi / 1.03 MPa |
| Title | Unit |
|---|---|
| Model | A884-221 |
| Suction capacity | 706 CFM / 20 m3/min |
| Number of elements | 4 |
| Dust removal system | Automatic Pulse Air Jet |
| Suction cap | Slide Type |
| Title | Unit |
|---|---|
| Number of rods | 4 + 1 (Starter Rod) |
| Rod diameter in inches (mm) | 1.3″, 1.5″, 1.8″ (32 mm, 38 mm, 45 mm) |
| Title | Unit |
|---|---|
| Battery | 12V; 108Ah/5hr |
| Light | 24V; 70W x4 |
| Voltage | DC 24V |
| Title | Unit |
|---|---|
| Fuel tank | 84 gal (320 L) |
| Hydraulic tank | 45 gal (170 L) |
| DEF tank *4 | 5 gal (19 L) |
| Title | Unit |
|---|---|
| Bit range in inches (mm) | 2.5″ – 3.5″ (64 mm – 89 mm) |
| Rod diameter | 32H, 38R, 45R, (38H) |
| Rod length in inches (mm) | 10′ or 12′ (3,050 or 3,660 mm) |
| First rod length maximum in inches (mm) | 14′ (4,270 mm) |
Options
Water / Dust Suppression System – 35 gal
Water / Dust Suppression System – 70 gal
2D Angle Indicator
Rear Bumper
Cold Weather Kit (Esper, Webasto)
Heating Pad
Dependable Blasthole Drills Start at Step One
Blasthole rigs and drills don’t need much explanation. They’re used for drilling a hole into the surface of the rock, packing the hole with explosives and then detonating those explosives in the blasthole to break up rock and hard minerals to make it easier to remove.
If you are interested in learning more, download our guide on choosing the right rock drill for your job.
