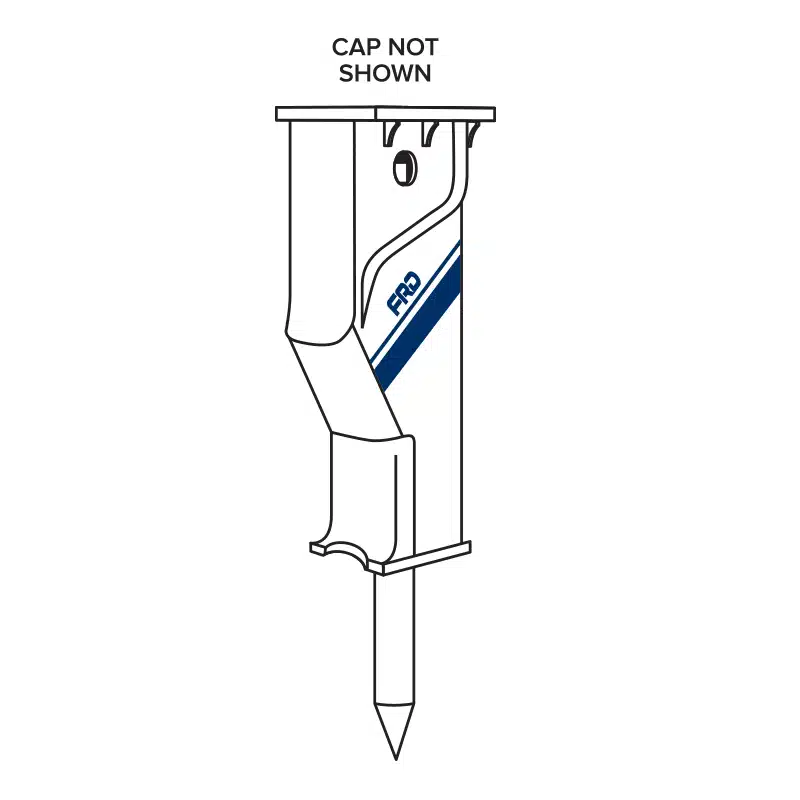

FHB35-Qtv

Large Series Hydraulic Breaker

Configured with a LOW NOISE protective cradle designed to accept a wide variety of Top Caps for Mini-Excavators or Backhoes.

WITH Qtv CRADLE

ADJUSTABLE BPM340~510
ACCEPTABLE GPM RANGE (LPM)44.8~56.6 (170~250)
ACCEPTABLE PSI RANGE (BAR)2,320~2,610 (160~180)
FRD Part numberDescriptonQty
K902415920010Seal kit - Cylinder1
K902415920020Seal kit - Backhead1
K902415920030Seal kit - Valve/Accum1
K002415100070Rod pin2
K002408830130Dust Plug (for Rod pin)2
K002408100110Stop pin2
K002407100100Stop pin1
K002415100060Stop pin4
K002408700050Diaphragm1
KFX37525221Blunt1
KFX37525224Chisel1
KFX37525225Moil1
KBM21805Charge kit1

CARRIER COMPATIBILITY GUIDE for FHB35

Select Carrier Type

Wheeled Excavator
Excavator
>
<
Scroll horizontally for additional carrier options
The compatibility of the described attachment is always dependent on your carrier’s specific configuration. Please call Product Support if you’re unsure of proper fit.
